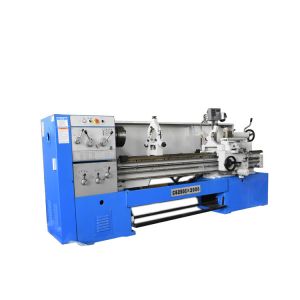

High Precision Metal Manual Lathe Machine , CA6150 Mini Bench Lathe
This series machine is suitable for turning inside and outside the cylinder, cone and other surface of revolution. Cutting all kinds of the metric system, the inch thread, the modulus and the, and and can perform drilling, etc.
1. The bed is wider than that of the common ones, also with high rigidity, as the surface of the bedways is hardened by medium frequency induction, therefore, it is very durable.
2. The lathe is very convenient and concentrated to operate with quick movement structure on the slides.
3. The lathe also exceeds others in structure and delivery rigidity, as well as efficiency, and its suitable for cutting under high speed. In addition, it also has a big spindle bore and complete accessories.
| Model | CA6140 CA6240 | CA6150 CA6250 | CA6161 CA6261 | CA6166 CA6266 | CA6180 CA6280 |
| CA6140B CA6240B | CA6150B CA6250B | CA6161B CA6261B | CA6166B CA6266B | CA6180B CA6280B |
| | CA6150C CA6250C | CA6161C CA6261C | CA6166C CA6266C | CA6180C CA6280C |
| Max. Swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm |
| Max. Swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm |
| Max. Swing in gap | ---- | 630mm | ---- | 720mm | ---- | 830mm | ---- | 880mm | ---- | 1020mm |
| Effective gap length | ---- | 210mm | ---- | 210mm | ---- | 210mm | ---- | 210mm | ---- | 210mm |
| Max. length of work piece | 500mm or 750mm or 1000mm or 2000mm or 2200mm or 3000mm or 4000mm |
| Width of bed | 400mm |
| Section of turning tool | 25mm x 25mm |
| Spindle hole | 52mm (80mm)[ Φ105] |
| Spindle taper | Morse No.6(MT6)( Φ 90 1:20)[ Φ 113 1:20] |
| Number of feeds | 64kinds (for each) |
| Range of metric threads (kinds) | (1-192mm) (44 kinds) |
| Range of inch threads (kinds) | (1-24tpi) (21 kinds) |
| Range of module threads (kinds) | 0.25-48(module 39 kinds) |
| Range of pitch threads (kinds) | 1-96DP (37 kinds) |
| Max. tailstock spindle travel | 150mm |
| Tailstock spindle diameter | 75mm |
| Taper of tailstock spindle center hole | MT5 |
| Main motor | 7.5kw (10HP) |
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
3.When is the delivery time?
We will delivery it within 40 days after received your payments.
4. How to handle the warranty period?
During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.
5.Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer’s installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
6.Do your products support trade assurance?
Yes, our products are all supported.
